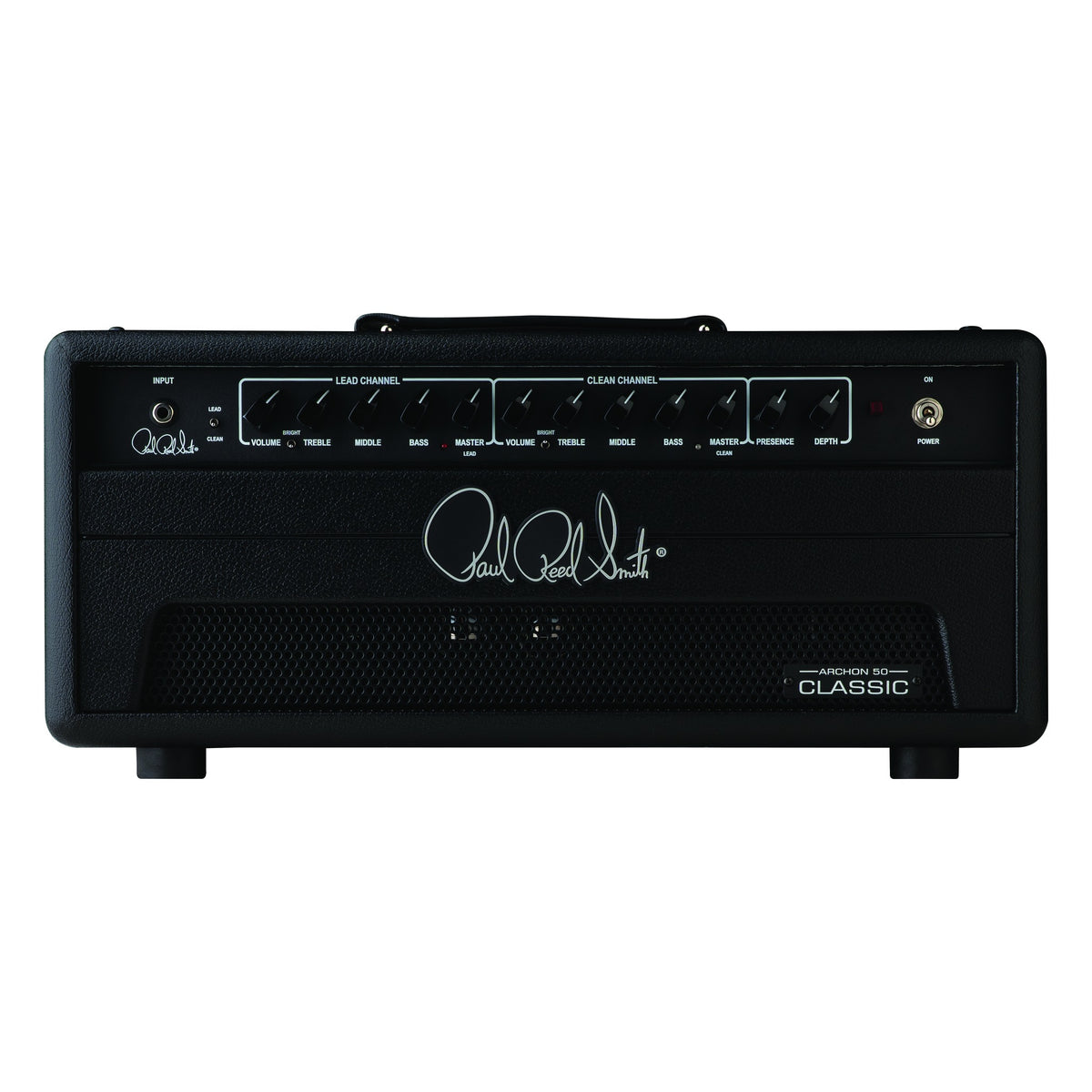

PRS amp designer Doug Sewell describes the Archon Classic 50 as a newly voiced Archon rather than a reissue. It keeps the two-channel, 50-watt format, with JJ 6CA7 power tubes and JJ ECC83S preamp tubes, and reworks the gain structure. The Lead channel offers a wider range of gain flavours, especially through the midrange, and the Clean channel runs hotter, going from clean to the edge of breakup without a boost pedal.
Both channels have volume, master, bright switch and 3-band EQ. The global Depth control lets you choose between a tight, focused low end and a looser, bass-heavy one, while Presence pushes the high mids forward. There is a tube-driven series loop for a pedalboard.
Sewell aimed it at players chasing 70s and 80s rock tones. Compare it with the Archon 50 Head, which reaches further into metal, and pair it with an Archon 2x12 Cabinet.
SPECIFICATIONS
AMPLIFIER
Country of Origin: Indonesia
Available Configurations: Head
Channels: Lead & Clean
Wattage: 50
TUBES
Power Tubes: (2) JJ 6CA7
Preamp Tubes: (6) JJ ECC83S
V1: Input
V2: Clean
V3: Lead
V4: Lead
V5: Loop
V6: Phase Inverter
CONTROLS
Lead Channel: Volume, Bright Switch, Treble, Middle, Bass, Master Volume
Clean Channel: Volume, Bright Switch, Treble, Middle, Bass, Master Volume
Global Controls: Presence, Depth

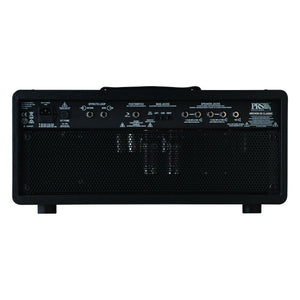

CONNECTIONS
Inlet: Fused Power Inlet (IEC)
Effects Loop: Series, Tube Driven
Extension Speaker Jacks: 5
Ohm Switching: (2) 4 ohm parallel, (2) 8 ohm parallel, (1) 16 ohm
Bias: Adjustable with Monitoring Jacks
Footswitch Jack: 1/4” mono
HARDWARE
Covering: Black Textured Vinyl
Piping: Black Embossed Welt
Panel: Black Textured Vinyl
Handle: Stitched Black Faux Leather
DIMENSIONS
Amp Width: 21.5” (54.6 cm)
Amp Depth: 10” (25.4 cm)
Amp Height: 10” (25.4 cm) including feet
Amp Weight: 32.4 lbs (14.7 kg)
ACCESSORIES
Included Accessories: 1-Button Footswitch for Channel Switching
