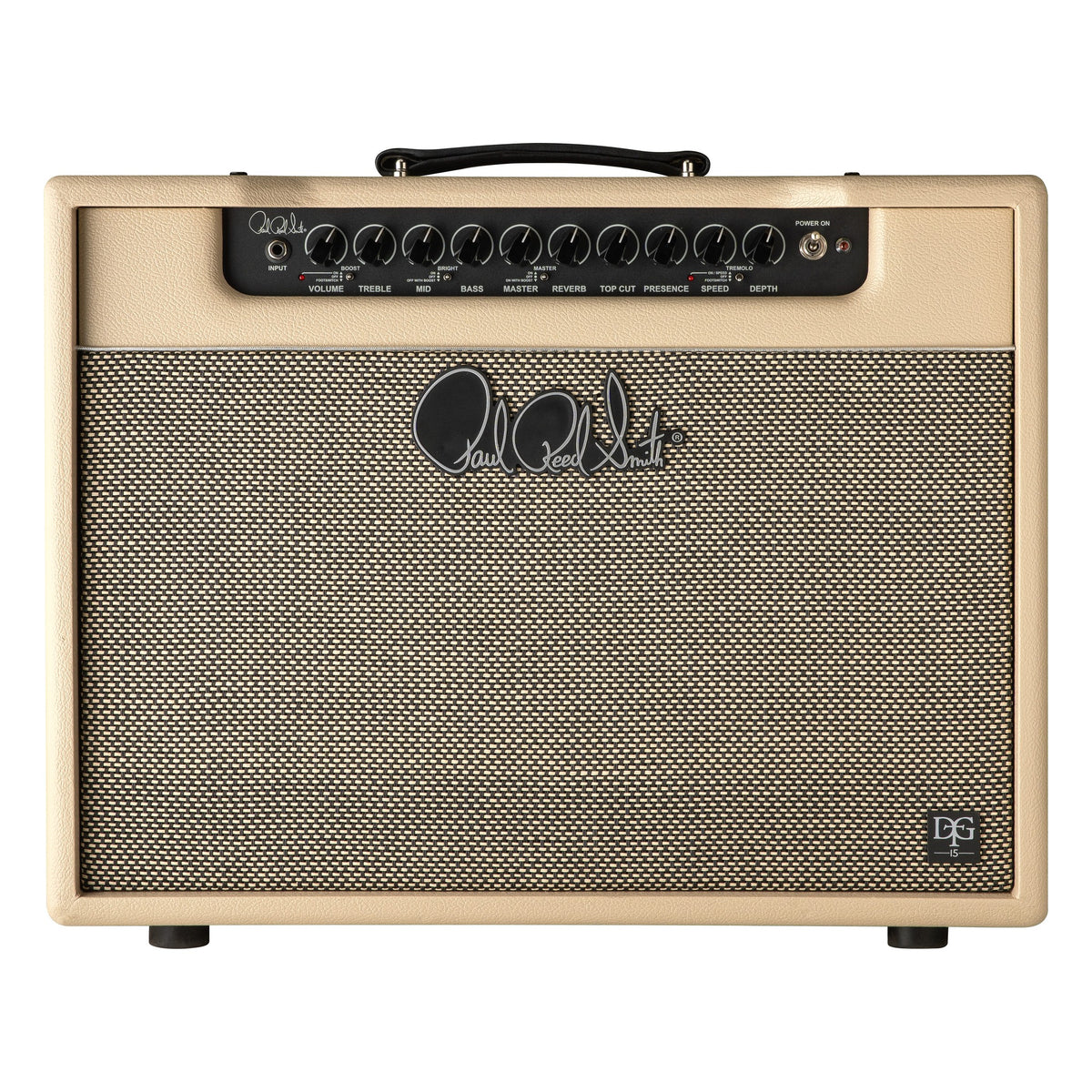

The DGT 15 1x12 Combo puts PRS's 15-watt David Grissom amp into one cabinet with a Celestion Vintage 30. Inside are two EL84s, three 12AX7s and a 12AT7, cathode biased, on a single channel.
PRS pitches this one as a clean platform first. The master volume and 3-position bright switch let you shape the top end at any volume, and the boost, tube-driven reverb, top cut and bias tremolo sit on the front panel. There is no effects loop, so pedals go in front of the amp. Boost, reverb and tremolo are on the included three-button footswitch.
This is the version for a player who wants one box to carry, at 42 lbs. The DGT 15 Head is the same design as a head, to pair with the DG 1x12 Cabinet, and the Sonzera 20 1x12 Combo is the two-channel option with spring reverb and a loop.
SPECIFICATIONS
AMPLIFIER
Country of Origin: Indonesia
Available Configurations: Combo
Channels: Single
Wattage: 15
TUBES
Power Tubes: (2) EL 84
Preamp Tubes: (3) 12AX7 (1) 12AT7
V1: Input
V2: Reverb Driver
V3: Reverb Recovery
V4: Phase Inverter
CONTROLS
Front Panel Controls: Tremolo Switch, Tremolo Depth, Tremolo Speed, Top Cut, Reverb, Master Switch, Master, Bright Switch, Bass, Mid, Treble, Boost Switch, Volume
CONNECTIONS
Inlet: Fused Power Inlet (IEC)
H.T. (B+) Fuse: Screwdriver Accessible, 500mA/500V Slo Blo
Effects Loop: N/A
Extension Speaker Jacks: 3
Ohm Switching: (2) 4 ohm parallel, (2) 8 ohm parallel, (1) 16 ohm
Bias: Cathode Biased with Monitoring Jacks
Footswitch Jack: 5-pin DIN
HARDWARE
Covering: Blonde Tolex
Grill Cloth: Salt and Pepper
Speakers: Celestion Vintage 30
DIMENSIONS
Amp Width: 24.5” (62.23 cm)
Amp Depth: 10.5” (26.67 cm)
Amp Height: 18.5” (47 cm)
Amp Weight: 42 lbs. (19.05 kg)
ACCESSORIES
Included Accessories: 3-Button Footswitch (Boost, Reverb, Tremolo)
