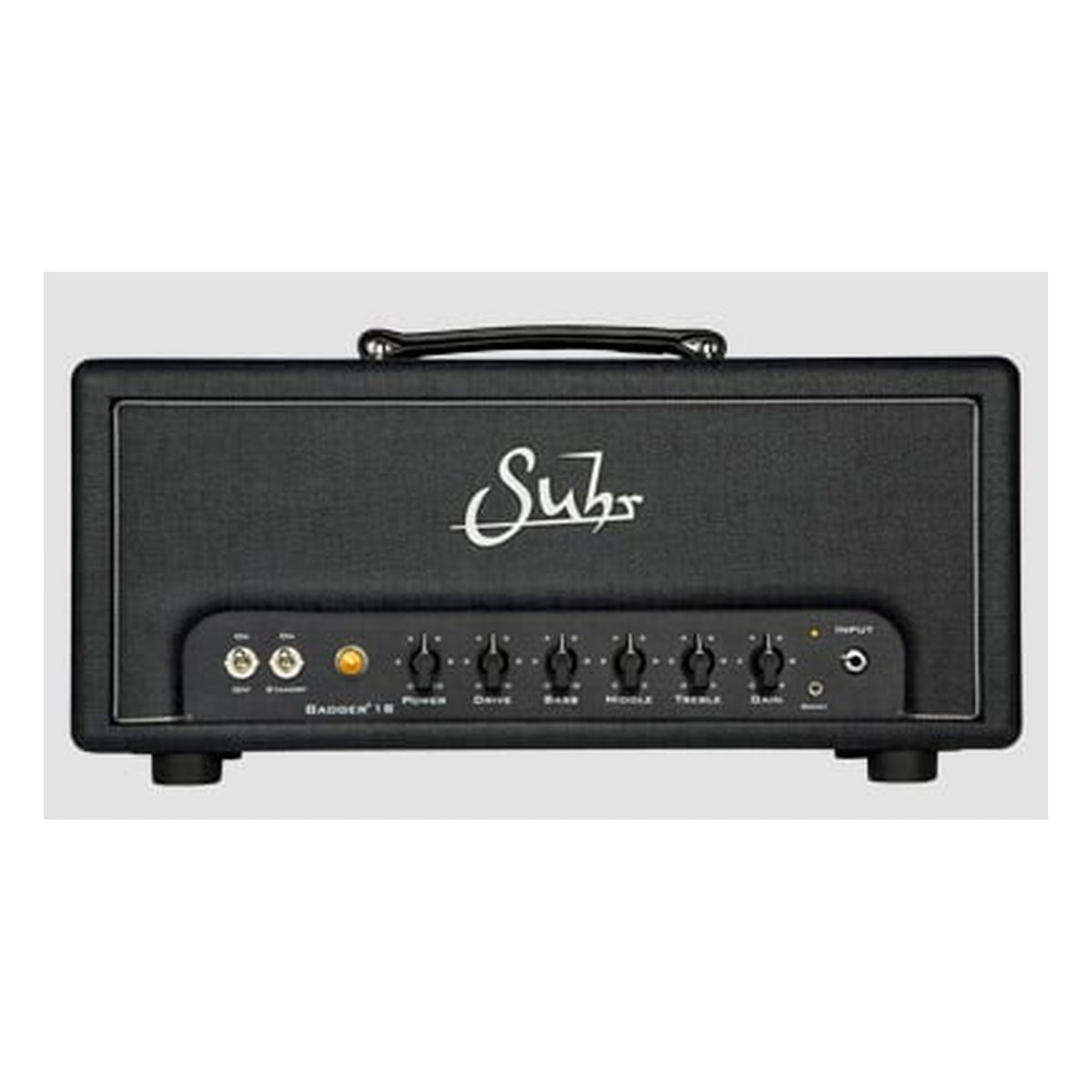

The Badger 18 is the Badger head with a 5Y3GT tube rectifier feeding two EL84s, for about 15 watts. It is a single-channel, cathode-biased amp, so power tubes can be changed without a bias adjustment, and it follows the guitar's volume control and the weight of your picking hand.
Power Scaling sets the voltage to the output section and the Drive control tracks it, which takes the amp down as far as 1 watt while keeping the feel of a head run flat out. A footswitchable MOSFET Boost in the preamp opens up cleaner and dirtier settings, and the effects loop is tube driven and buffered, so it takes pedals and line level rack gear alike.
Of the three Badgers, this is the one with the tube rectifier. The Badger 35 Head runs four EL84s on a solid state rectifier for about 30 watts, and the Badger 30 Head moves to a pair of EL34s at about 25. Suhr's matching cabinet is the Badger 1x12 Cabinet, loaded with a Warehouse Veteran 30.
SPECIFICATIONS
AMPLIFIER
Country of Origin: United States
Configuration: Head
Channels: Single channel, cathode biased
Output: ~15 Watts
Boost: High-voltage cascaded MOSFET Boost (footswitchable)
Power Scaling: Power and Drive controls, down to 1 watt
Effects Loop: Tube driven, buffered, series effects loop
TUBES
Preamp Tubes: 3x 12AX7
Power Tubes: 2x EL84
Rectifier: 5Y3GT Tube Rectifier
CONTROLS
Panel Controls: On/Off, Standby, Power, Drive, Bass, Middle, Treble
CONNECTIONS
Speaker Outputs: Dual speaker outputs: Selectable between 4Ω, 8Ω & 16Ω impedance
HARDWARE
Covering: Textured Black Tolex
Control Panels: Black Anodized Aluminium
Logo: Solid Aluminium Bead Blasted Script Suhr Logo
DIMENSIONS
Dimensions: 20.5" (W) x 8.25" (D) x 9.25" (H)
Weight: 23lbs
ACCESSORIES
Included Accessories: Slip Cover, Footswitch
