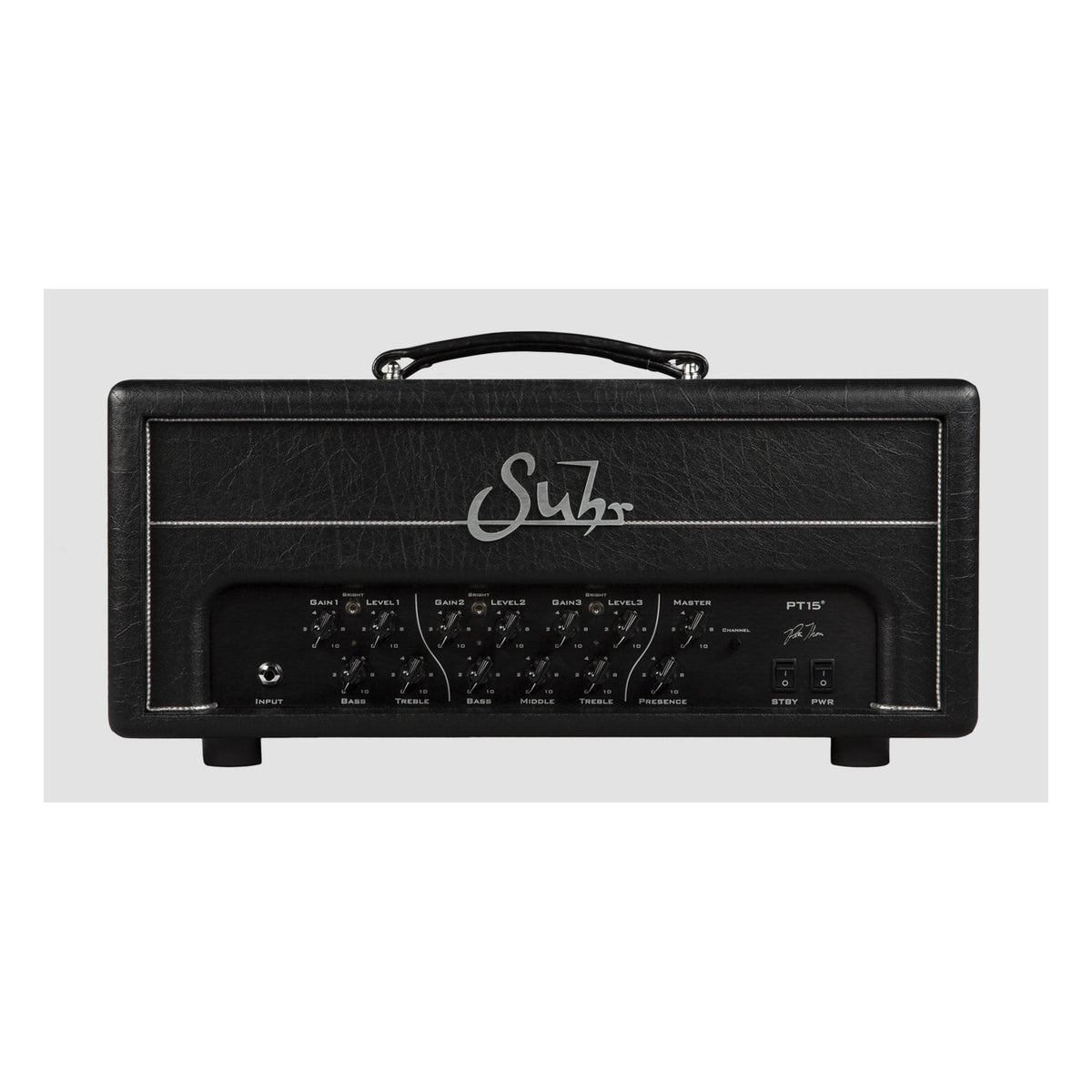

The PT15 is a 15-watt, three-channel all-tube head on a pair of 6V6GTs and five 12AX7s, with the power section set up to give a small amp generous clean volume. It covers American and British voicings across its three channels.
Channel 1 has its own Bright switch, Gain, Bass, Treble and Level. Channels 2 and 3 each get their own Gain and Level and share a Bright 2/3 switch and a Bass, Middle and Treble stack. The effects loop is tube driven and buffered, and a footswitch is included.

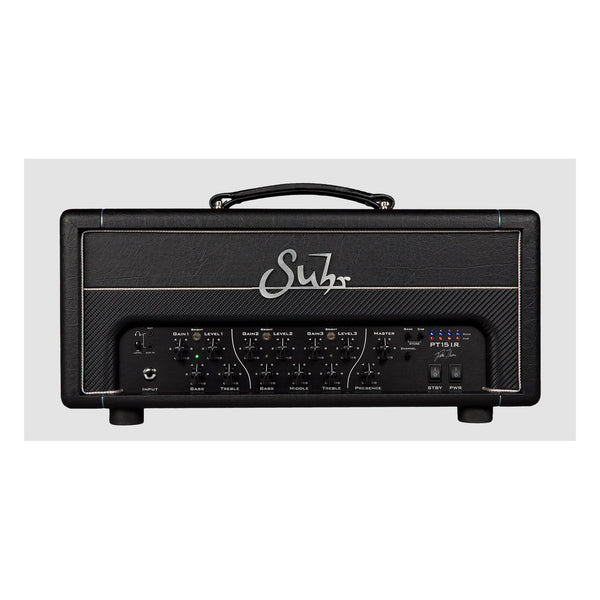

The PT15 I.R. Head is the same tube circuit with a built-in reactive load, 16 onboard impulse responses, a line out and a headphone output, and it is the one to pick if you record direct or want to play with no cabinet at all. The PT15 Head suits a player who will always run a speaker, and Suhr makes the PT15 1x12 Cabinet and PT15 2x12 Cabinet to match. For 100 watts and MIDI switching, look at the PT100 Signature Edition Head.
SPECIFICATIONS
AMPLIFIER
Country of Origin: United States
Configuration: Head
Channels: 3
Output: 15 watts
FX Loop: Tube driven, buffered
TUBES
Tubes: 2 x 6V6GT (Power Section), 5 x 12AX7
CONTROLS
Front Panel: Input, (CH1) Bright Switch, Gain 1, Bass, Treble, Level 1, (CH 2/3): Bright 2/3 Switch, Gain 2, Gain 3, Bass, Middle, Treble, Level 2, Level 3, Channel Select Switch, Power & Stand By switch
CONNECTIONS

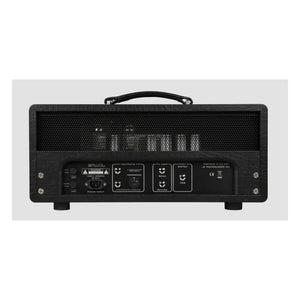

Back Panel: H.T. Fuse, Mains Fuse, Mains Input, 1/4" Speaker Outputs, Impedance Selector, FX Loop Send, FX Loop Return, Footswitch (TRS) jack
Mains Fuse: T1.5A/250V (Slo-Blo) - 100/120VAC, T.75A/250V (Slo-Blo) - 230/240VAC
H.T. Fuse: F.5A/250V (Fast-Blo)
DIMENSIONS
Dimensions: 20.5" (W) x 8.25" (D) x 9.25" (H)
Weight: 23.7 lbs
ACCESSORIES
Footswitch: Included
