The PT15 I.R. puts a reactive load and impulse responses inside a 15-watt, three-channel all-tube head. The reactive load lets it run safely with no speaker connected, and the balanced line out sends a DAW, PA or headphones a mic'ed cabinet sound. The tube path itself carries no digital circuitry; processing applies only to the I.R. output.
It comes with 16 impulse responses of Suhr cabinets, six of them blends made by Pete Thorn, and takes third-party IRs over USB. Each channel holds its own IR, so the cabinet changes when the channel does. A headphone output and a 1/8" Aux In turn it into a silent practice rig, and the line out can also run without an IR for processing in the DAW.

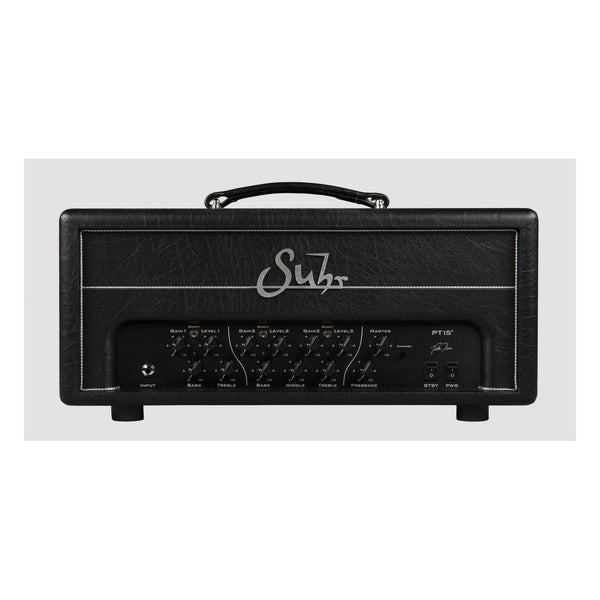

Power is a pair of 6V6GTs with five 12AX7s. The PT15 Head is the same tube circuit without the load, IRs or headphone output, for a player who will always run a cabinet. Of the two, this is the one we would choose for anyone who records or wants the option of a silent stage.
SPECIFICATIONS
AMPLIFIER
Country of Origin: United States
Configuration: Head
Channels: 3
Output: 15 watts
FX Loop: Tube driven, buffered
Reactive Load: Built in
I.R.s: 16 Suhr cabinet impulse responses on board, third-party IRs loadable via USB
I.R. Format: WAV, Mono, 24bit, 48kHz, 20.5 ms (I.R.s greater than 20.5 ms will be truncated to 20.5 ms)
I.R. Output Latency: 1.2ms
TUBES
Tubes: 2 x 6V6GT (Power Section), 5 x 12AX7
CONTROLS

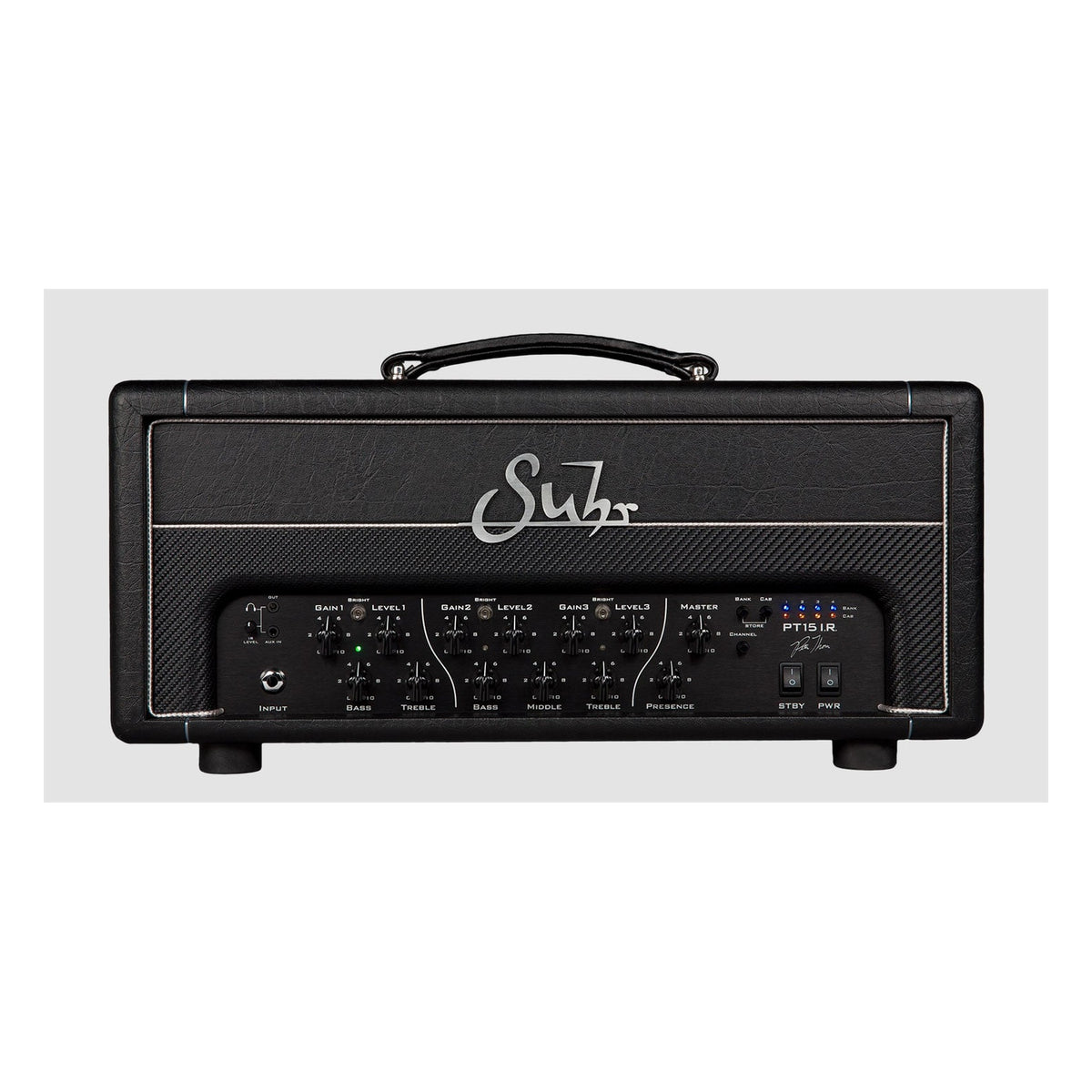

Front Panel: Input, Aux Input, Headphone Output, IR Level, (CH1) Bright Switch, Gain 1, Bass, Treble, Level 1, (CH 2/3): Bright 2/3 Switch, Gain 2, Gain 3, Bass, Middle, Treble, Level 2, Level 3, Channel Select Switch, I.R. Bank Select Button, I.R. Cab Select Button, I.R. LEDs, Power & Stand By switch
CONNECTIONS

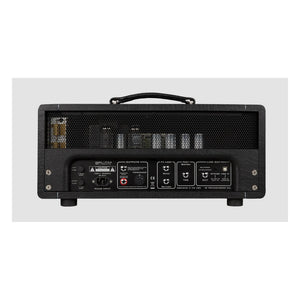

Back Panel: H.T. Fuse, Mains Fuse, Mains Input, Reactive Load Parallel Output, Reactive Load Disconnected Output, Impedance Selector, FX Loop Send, FX Loop Return, Footswitch (TRS) jack, Balanced/Unbalanced Line Out, I.R. Filter Bypass Button, USB Jack
Mains Fuse: T1.5A/250V (Slo-Blo) - 100/120VAC, T.75A/250V (Slo-Blo) - 230/240VAC
H.T. Fuse: F.5A/250V (Fast-Blo)
DIMENSIONS
Dimensions: 20.5" (W) x 8.25" (D) x 9.25" (H)
Weight: 24.7 lbs
ACCESSORIES
Footswitch: Included
