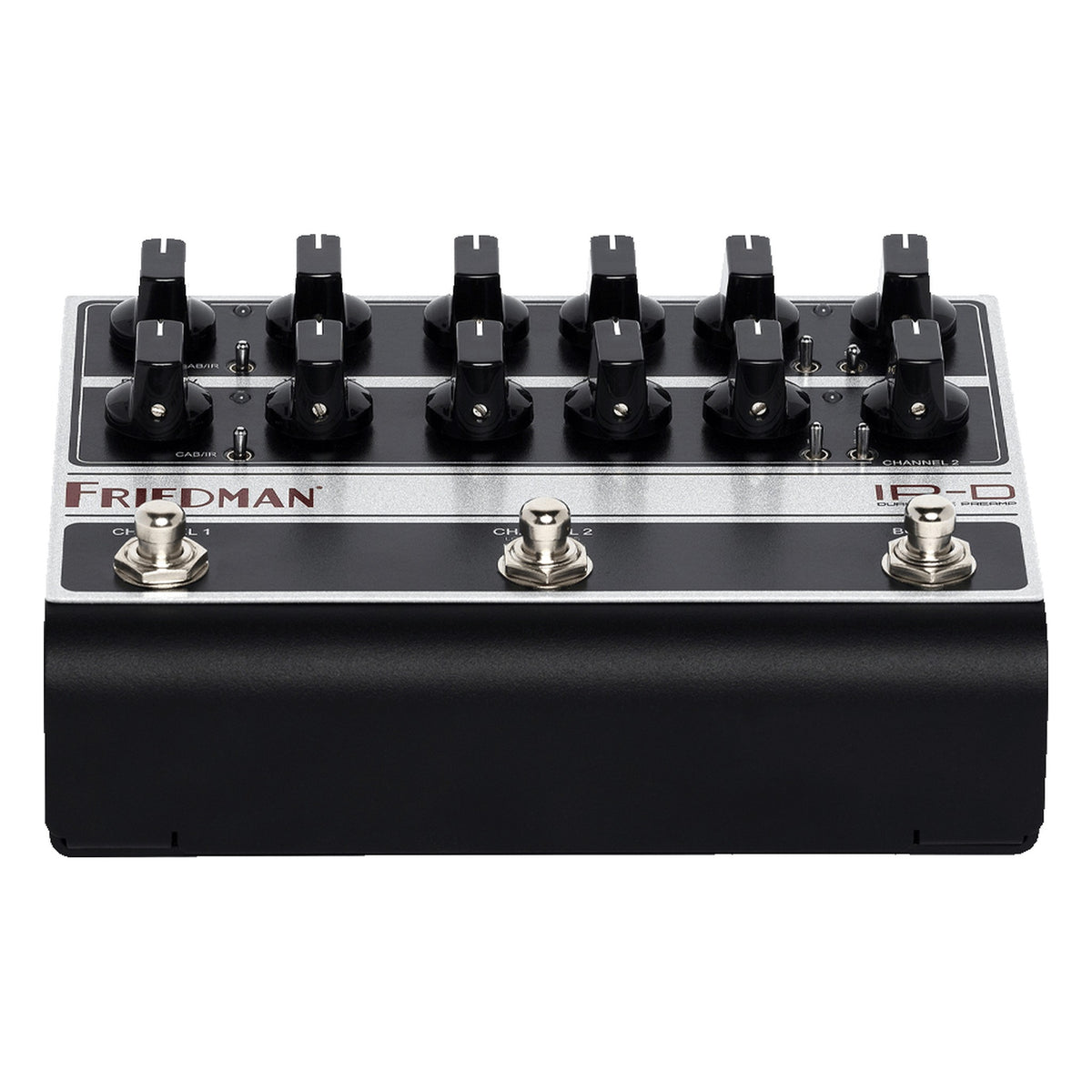

The IR-D is a Friedman tube preamp and DI with two identical channels, both based on the Dirty Shirley and Twin Sister. Friedman describes that circuit as Dave's modded JTM45, and it is the British, lower-gain side of the Friedman sound. Two 12AX7s run at high voltage inside a box about six and a half inches wide, followed by power amp simulation and an impulse response cab, out through a balanced TRS jack or headphones.
Because the channels match, you can set one for rhythm and one for lead, or two different amounts of the same sound. Each has its own boost, a 2-way Bright switch and a 3-way Structure switch, so three footswitches cover four sounds. Run it as a full rig to the desk, as a preamp into a power amp and a real cab, or as an IR loader through the loop return. Thirteen Friedman IRs come with the editor, including the Dirty Shirley 1x12, and you can load your own and save to 128 MIDI presets.
The box and connections are the same as the IR-X. The difference is voicing: the IR-X splits clean-to-crunch and high gain across its channels, while the IR-D stays in the Dirty Shirley range on both. If the Dirty Shirley head or combo is the sound you want on a pedalboard, this is that one.
SPECIFICATIONS
AMPLIFIER
Country of Origin: United States
Type: All-tube HIGH-VOLTAGE preamp, DI
Channels: Two independent identical channels + boost
Voicing: Based on Friedman's Dirty Shirley/Twin Sister designs
TUBES
Preamp Tubes: 2 x 12AX7
CONTROLS
Per Channel: Volume, Gain, Bass, Middle, Treble
Boost (per channel): Boost Volume and Gain
Bright: 2-way Bright switch (per channel)
Structure: 3-way Structure switch (per channel)
CAB/IR Select: Three position switch per channel (programmable via software)
Footswitches: Three multi-function foot switches

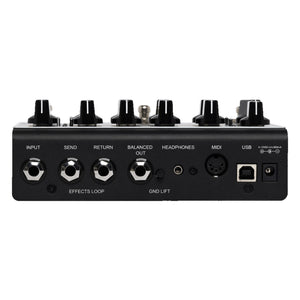

CONNECTIONS
Output: TRS balanced output
Headphones: Headphone output
Effects Loop: Ultra-transparent series FX loop (bypassable)
MIDI: 5 pin standard connector and USB MIDI
FEATURES
Power amp simulation with software editable Presence and Thump (per channel)
Low latency Impulse Response cabinet simulation (bypassable)
IRs: 13 free Friedman IRs or load your own
MIDI programmable: Channel select / Boost, IR select, Thump and Presence, Effects loop ON/OFF, Boost Lock
Presets: 128 MIDI presets
Software: USB software editor, powered by SYNERGY
Warranty: Limited 3-year Warranty
POWER
Power Supply: Universal 12V Power Supply Included
DIMENSIONS
Dimensions (Including Knobs): 5.5” (D) x 6.5” (W) x 2.3 (H)
Weight: 1.5 lbs
ACCESSORIES
Included: Universal 12V Power Supply, 6 Foot USB2.0 A Male to B Male cable
