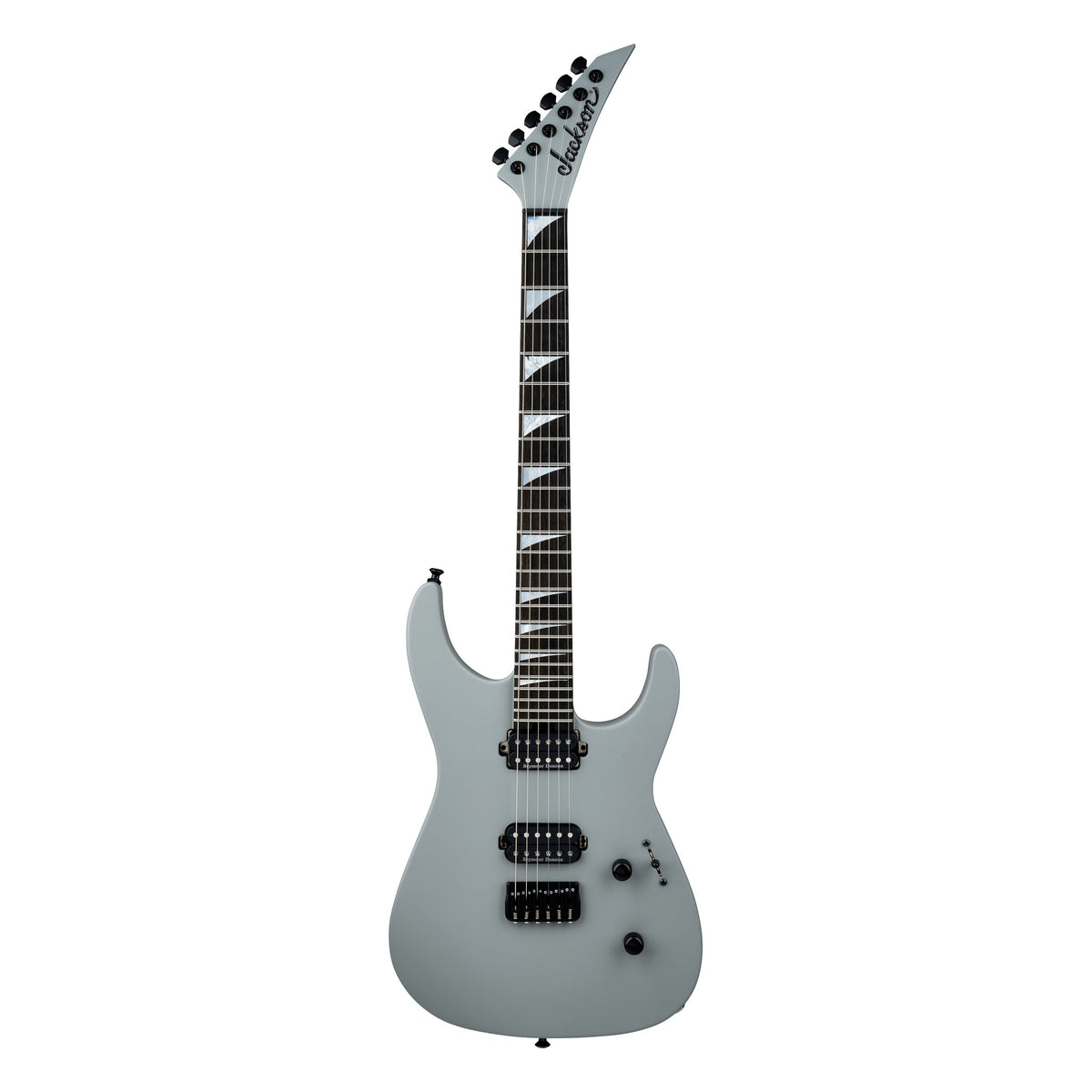

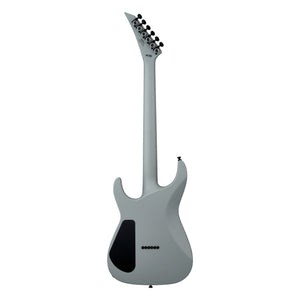

The American Series Soloist SL2 DX HT puts Jackson's Soloist body in alder around a 3-piece maple neck-through with graphite reinforcement, made in Corona, California. The Jackson Speed Neck carries an ebony board with a 12" to 16" compound radius, 24 jumbo stainless steel frets, inverted mother of pearl sharkfins and Luminlay side dots.
The Seymour Duncan JB TB-4 and '59 SH-1N are wired to a 5-way blade. Positions 1, 3 and 5 give you the bridge, both, and the neck, while 2 and 4 pair one coil from each pickup. HT is the hardtail version: a Hipshot fixed bridge with Gotoh MG-T locking tuners, simple to restring and retune.

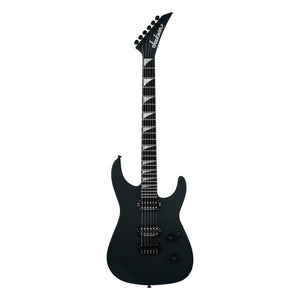

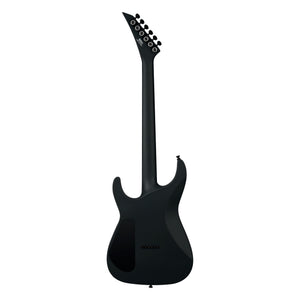

The American Series Soloist SL2 DX is the same guitar with a Floyd Rose 1500 Series tremolo. For active EMG 81 and 85 pickups on a hardtail Soloist, look at the SL2MG HT. Satin Porsche Gray and Satin Black are both satin, with black hardware and a colour-matched headstock.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Material: Alder
Body Finish: Satin
Body Shape: Soloist
NECK
Neck Material: 3-Piece Maple
Neck Construction: Neck-Through-Body with Graphite Reinforcement
Neck Finish: Satin Color Matched
Neck Shape: Jackson Speed Neck
Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Ebony
Position Inlays: Inverted Mother of Pearl Sharkfin
Side Dots: Luminlay
Number of Frets: 24
Fret Size: Jumbo Stainless Steel
Truss Rod: Dual-Action with Wheel
Nut Material: Graph Tech TUSQ XL
Nut Width: 1.6875" (42.86 mm)
Scale Length: 25.5" (648 mm)
ELECTRONICS
Bridge Pickup: Seymour Duncan JB TB-4
Neck Pickup: Seymour Duncan '59 SH-1N
Pickup Configuration: HH
Controls: Volume, Tone
Switching: 5-Position Blade: Position 1. Bridge, Position 2. Bridge Outer Coil and Neck Inner Coil, Position 3. Bridge and Neck, Position 4. Bridge Inner Coil and Neck Outer Coil, Position 5. Neck
HARDWARE
Bridge: Hipshot 6 - Fixed .175
Hardware Finish: Black
Tuning Machines: Gotoh MG-T Locking
Pickup Covers: Black
Control Knobs: Dome-Style
Strap Buttons: Dunlop Dual-Locking
Strings: Nickel Plated Steel (.009-.042 Gauges)
CASE
Case: Included Jackson Foam Core Case (p/n 2994742100)
