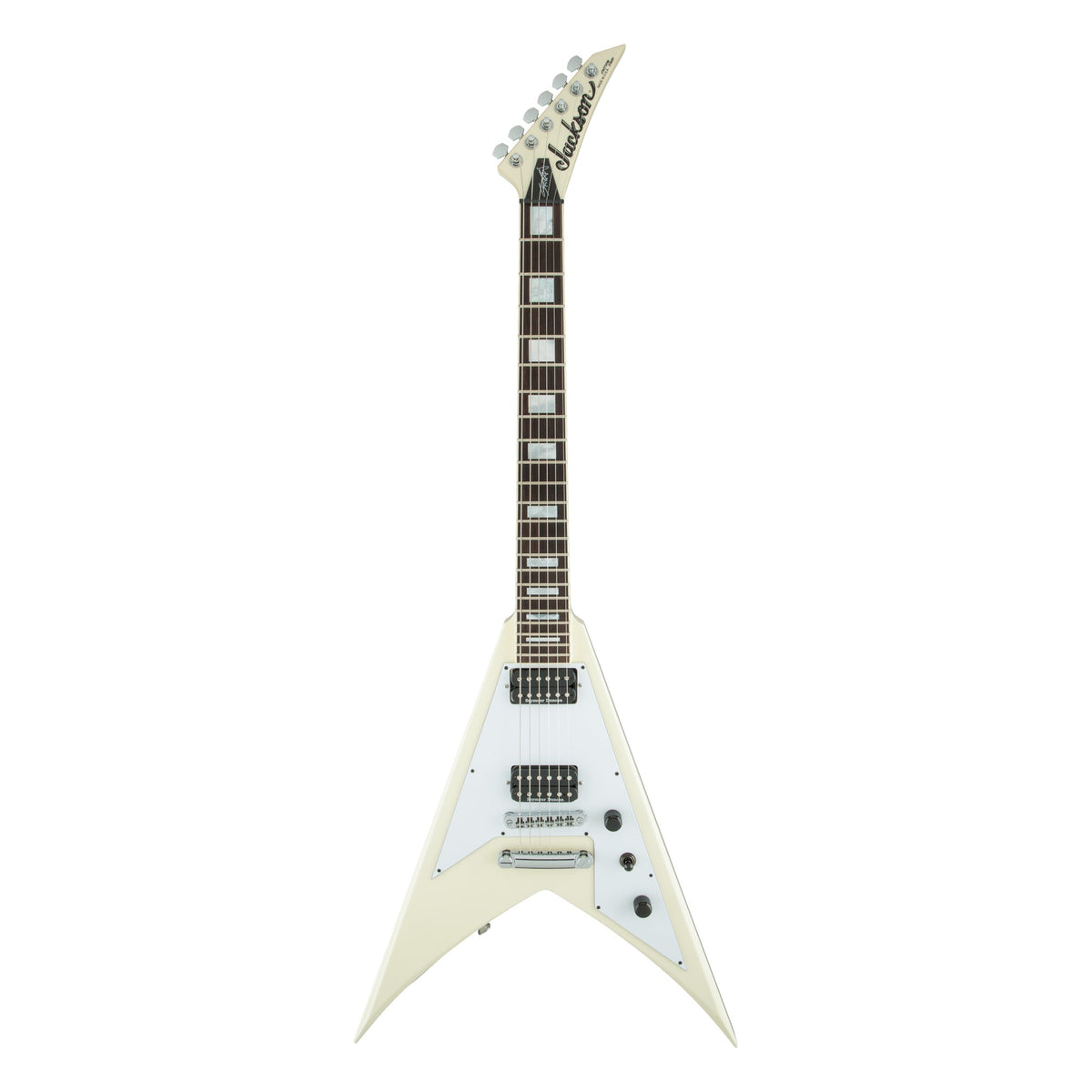

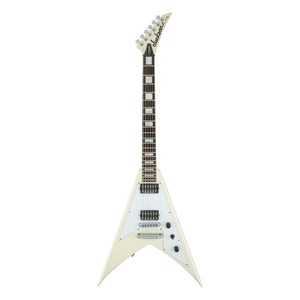

Scott Ian's King V is all mahogany: a mahogany body with a neck-through mahogany neck, reinforced with graphite and joined at a scarf joint. The 24.75" scale is shorter than most of the Jackson line, which eases string tension, and the rosewood board has a 12" to 16" compound radius, 22 jumbo frets and mother of pearl block inlays.
A Seymour Duncan JB SH-4 at the bridge and a Seymour Duncan '59 SH-1N at the neck run through a volume, a tone and a three-way toggle. The TonePros adjustable Tune-O-Matic style bridge with a Gotoh stop tailpiece anchors the strings, and Gotoh die-cast tuners sit on the six-in-line headstock. It comes in Ivory with a 1-ply white pickguard.
For a King V with an alder body, a 25.5" scale, an ebony board and a Floyd Rose Original, look at the USA Select King V KV2.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Material: Mahogany
Body Finish: Gloss Polyurethane
Body Shape: King V
Pickguard: 1-Ply White
NECK
Neck Material: Mahogany
Neck Construction: Neck-Through-Body with Graphite Reinforcement and Scarf Joint
Neck Finish: Gloss / Painted
Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Rosewood
Position Inlays: Mother of Pearl Block
Number of Frets: 22
Fret Size: Jumbo
Truss Rod: Dual-Action
Nut Material: Graph Tech TUSQ XL
Nut Width: 1.6875" (42.86 mm)
Scale Length: 24.75" (629 mm)
ELECTRONICS
Bridge Pickup: Seymour Duncan JB SH-4
Neck Pickup: Seymour Duncan '59 SH-1N
Pickup Configuration: HH
Controls: Volume, Tone
Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
HARDWARE
Bridge: TonePros Adjustable Tune-O-Matic Style with Gotoh Stop Tailpiece
Hardware Finish: Black
Tuning Machines: Gotoh Die-Cast
Control Knobs: Dome-Style
Strap Buttons: Standard
Strings: Nickel Plated Steel (.010-.052 Gauges)
CASE
Case: Deluxe Jackson Molded
