Jackson USA Signature Misha Mansoor Juggernaut HT7FM

Name: Jackson USA Signature Misha Mansoor Juggernaut HT7FM
Brand: Jackson
Price: 7679.99 CAD
Availability: BackOrder

Pre-orderJackson part 2803367889

4.8★ average Google rating

$7,679.99 CAD

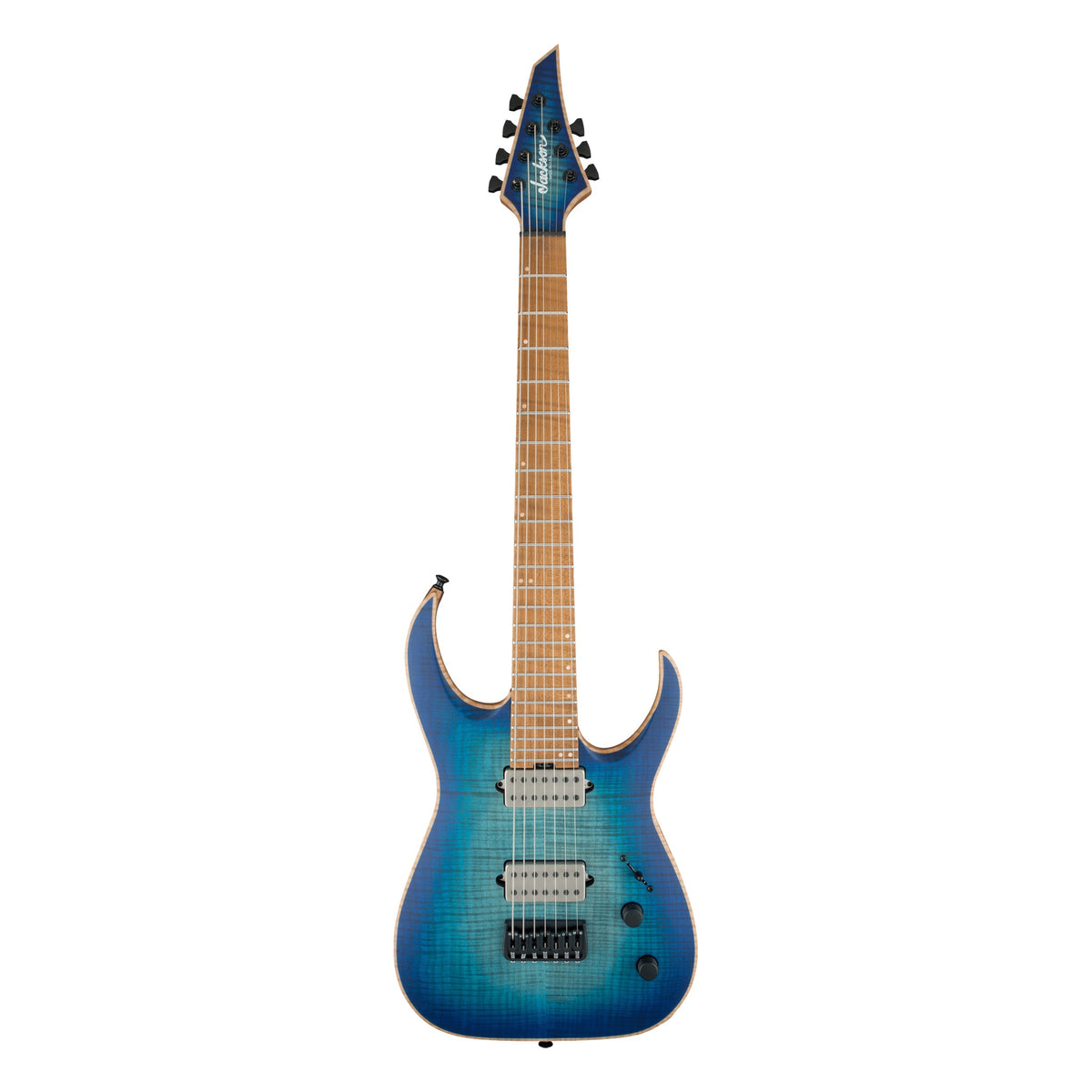

Finish: Satin Laguna Burst

By placing a pre-order you agree to our Pre-order Terms.

Time of arrival for special orders varies by product.
It can be anywhere from two weeks up to several months. After you order, we check with the supplier and email you an ETA. Want an estimate before you order?

Ordered in for you
Set up free
Shipped insured from Ottawa
Free shipping over $200

Got a question about this one?

We love talking guitars.

Email usshop@lauzonmusic.com Call the shop613-725-1116

Our take

Who this one is for

The HT7FM is the seven-string, figured-top Juggernaut from Misha Mansoor's USA Signature line. A caramelized mahogany body with a flame maple top and masked-off natural flame maple binding meets a bolt-on caramelized quartersawn maple neck with graphite reinforcement, a scarf joint and a hand-rubbed urethane finish. The extra low B sits on a 26.5" scale with a 1.75" nut.

On the caramelized flame maple board you get a 20" radius, rolled edges, 24 jumbo stainless frets and offset maple dots. Two Bare Knuckle Juggernaut humbuckers in brushed chrome covers feed a five-way blade with split-coil positions, a volume and a push/pull tone. A fixed Hipshot 7 bridge and Hipshot open-gear locking tuners on the 4x3 headstock keep tuning and restringing straightforward.

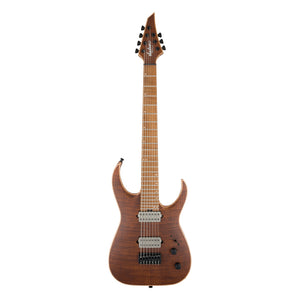

Two satin finishes, Satin Laguna Burst and Satin Amber Tiger Eye, both with black hardware. For the basswood seven-string with Bare Knuckle Ragnarok pickups, look at the HT7; the HT6FM is this guitar in six strings.

SPECIFICATIONS

BODY
Country of Origin: USA
Body Material: Caramelized Mahogany
Body Top: Flame Maple
Body Finish: Satin
Body Shape: Juggernaut
Body Binding: Masked off Natural Flame Maple Binding
Pickguard: None

NECK
Neck Material: Caramelized Quartersawn Maple
Neck Construction: Bolt-On with Graphite Reinforcement and Scarf Joint
Neck Finish: Hand-Rubbed Urethane
Fingerboard Radius: 20" (508 mm)
Fingerboard Material: Caramelized Flame Maple
Position Inlays: Offset Maple Dot
Number of Frets: 24
Fret Size: Jumbo Stainless
Truss Rod: Dual-Action
Nut Material: Graph Tech TUSQ XL
Nut Width: 1.75" (44.45 mm)
Scale Length: 26.5" (673 mm)

ELECTRONICS
Bridge Pickup: Bare Knuckle Juggernaut
Neck Pickup: Bare Knuckle Juggernaut
Pickup Configuration: HH
Controls: Volume, Tone (with Push/Pull Select Feature)
Switching: 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Single Coils, Position 3. Both Full Humbucking Pickups, Position 4. Outer Neck Single Coil, Position 5. Full Neck Pickup

HARDWARE
Bridge: Hipshot 7 - Fixed .175
Hardware Finish: Black
Tuning Machines: Hipshot Open-Gear Locking
Pickup Covers: Brushed Chrome
Control Knobs: Hipshot O-ring
Strap Buttons: Dunlop Dual-Locking
Strings: Horizon Devices Strings - Progressive Tension Heavy 7

CASE
Case: Included Jackson Dinky/Soloist SKB Hardshell (p/n 299-6100-506); Optional Soloist/Dinky Gig Bag (p/n 299-1512-106)

Bench inspected

Every instrument crosses our bench before it ships, and on an online order that setup is free. It can cover the frets, hardware, truss rod, action, nut slots, intonation, pickup heights and electronics, whatever the guitar needs.

Shipped insured

Free insured shipping in Canada on orders over $200.

Financing

Pay in full and you can spread the cost with PayPlan by RBC or Shop Pay Installments, with the exact terms shown at checkout. Financing never changes the price of the guitar. How financing works

Authorized dealer

Full manufacturer warranty on every new instrument.

Three generations

In the family since 1945, with a player answering your questions before and after you order.

Free with online orders

Set up your way

What a setup can cover

Whatever your guitar needs, it gets. None of it is an upcharge.

Frets polished
Fretboard conditioned
Hardware tightened
Fresh strings, your choice
Truss rod adjusted
Action set at the bridge
Nut slots detailed
Saddles radiused, where they are individual
Vibrato springs adjusted
Intonation set
Pickup height set
Electronics checked

Set up by Ian Vance, Fender Custom Shop Technician and Taylor Gold Level Technician

Strings

Gauge

Action

Tuning

Anything else How you play, a problem you have had with past setups, a request the list does not cover.

Pre-orders

Questions we get

How much do I pay today?

Your choice: the full price, or a 25% deposit. On a deposit, the balance is due when the guitar reaches the shop, before it ships to you. A deposit is paid by card or PayPal. Shop Pay, Apple Pay and Google Pay can't take one.

When will it arrive?

It varies by product, anywhere from two weeks up to several months. If you'd like a date for this model first, ask us in the chat and we'll check with the supplier before you order. If you're ready now, go ahead: we confirm the ETA by email once your order is in, and if it changes, we let you know and you can cancel.

Can I cancel?

Yes, any time before the supplier invoices it and ships it to us. We refund what you paid less 3% to cover the card processing fee.

Once it has shipped to us it is a special order and final sale. If it arrives with something wrong, we put that right.

What if the price goes up before it arrives?

You pay the price you ordered at. Once your order is placed we hold that price, even if the supplier raises it before the guitar arrives.

Is the free setup included?

Yes. A pre-order is an online order, so it gets the same free setup: it crosses our bench before it ships, set up the way you choose. The setup menu above shows what that covers.

Do I pay duty or brokerage on a US order?

No. Duty, taxes, brokerage and customs on a US order are handled at our end before the instrument leaves Ottawa. It arrives at your door with nothing to pay.

Orders going anywhere outside Canada and the United States work differently. The shipping and returns policy sets out which is which.

Can I finance it?

Yes, if you are in Canada and paying in full. Pick PayPlan by RBC or Shop Pay Installments as your payment method at checkout. The plan, the rate and the approval sit with the provider, and you see the terms before you agree to anything. You pay a deposit by card or PayPal.
