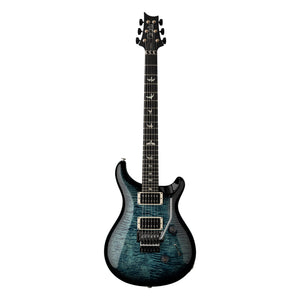

The Custom 24 "Floyd" takes the Custom 24 body, figured maple over mahogany with the violin carve, and builds it for heavy playing and hard vibrato work. The neck is one-piece maple with an ebony board and jumbo frets, the bridge is an Original Floyd Rose with a PR-11 locking nut, and the pickups are PRS's \ m / (metal) pair.
A double-locking Floyd clamps the strings at the nut and again at the bridge, which is how it holds pitch through the deepest dives. That's also why the tuners are Phase III Non-Locking, since the nut does the locking. The jumbo wire, .110" wide and .055" tall, is taller than the standard wire on the Custom 24, so there's more to dig into. PRS designed the \ m / pickups for heavier styles, aggressive and still articulate.
This is the Custom for a player who uses the bar hard and plays with gain. If you don't need double-locking, compare the Custom 24 with its Gen III tremolo, mahogany neck and rosewood board. Our pick is Black Rainbow Holoflake Top & Binding (Natural Back), a metal-flake top on the metal Custom.
The Top option is PRS's Standard figured maple or the 10 Top, a higher grade of figure listed with hybrid hardware.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Construction: Solidbody
Top Wood: Maple
Back Wood: Mahogany
Top Carve: Violin
Finish Type: High-Gloss Nitro
NECK
Number of Frets: 24
Fret Wire: PRS Jumbo Fret Wire
Width of Fret Crown: .110"
Height of Fret Crown: .055"
Scale Length: 25"
Neck Wood: Maple
Neck Construction: One-Piece
Truss Rod: PRS Double-Acting
Neck Shape: Pattern Thin
Neck Depth at the 1/2 Fret: 53/64"
Neck Depth at the 12 1/2 Fret: 57/64"
Neck Width at the Nut: 1 11/16"
Neck Width at the Body: 2 1/4"
Fretboard Wood: Ebony
Fretboard Radius: 10"
Fretboard Inlay: Birds
Headstock Logo: Signature, Inlaid
Neck/Body Assembly Type: Set
HARDWARE
Bridge: Original Floyd Rose Tremolo
Tuners: PRS Phase III Non-Locking Tuners with Wing Buttons
Hardware Type: Nickel
Nut: PR-11 Locking
Truss Rod Cover: "Custom"
ELECTRONICS
Treble Pickup: \ m /
Bass Pickup: \ m /
Controls: Volume and Tone Control with 5-Way Blade Pickup Switch
STRINGS
Strings: PRS Signature 10-46
Tuning: Standard (6 String): E, A, D, G, B, E
Options: 10 Top with Hybrid Hardware
CASE
Case: Hardshell Case
