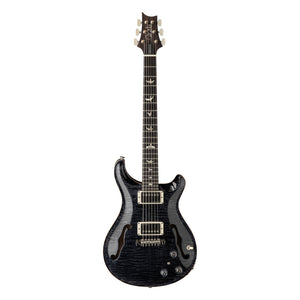

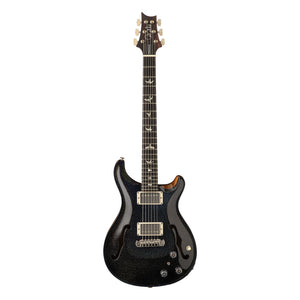

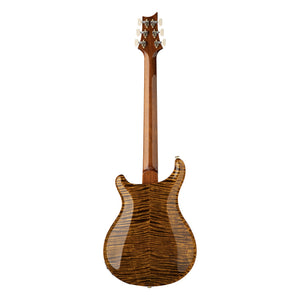

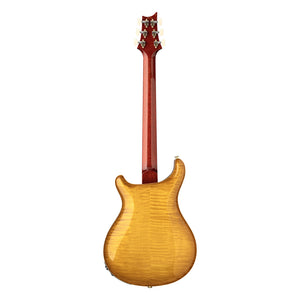

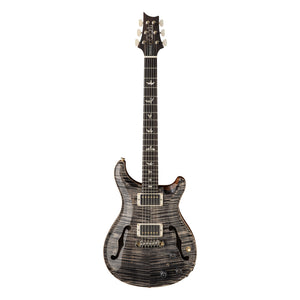

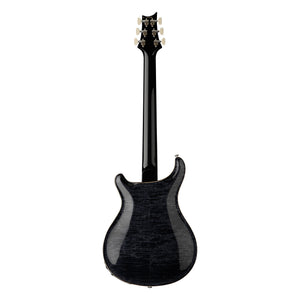

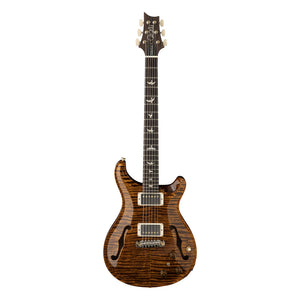

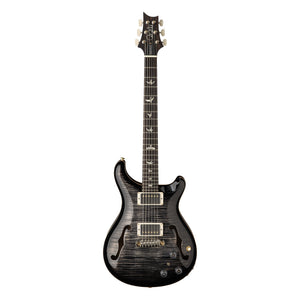

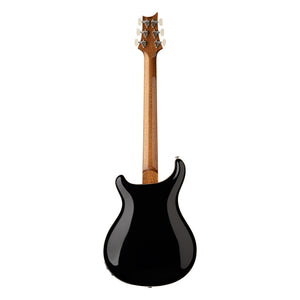

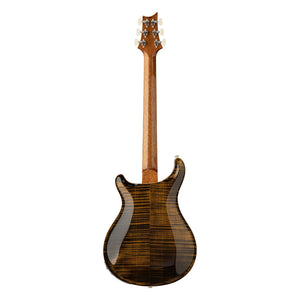

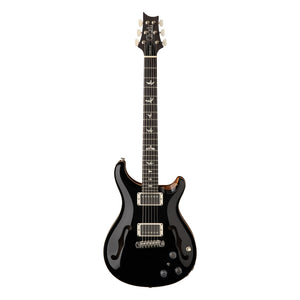

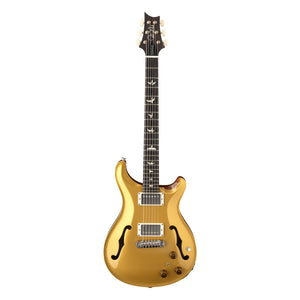

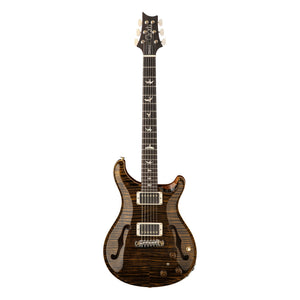

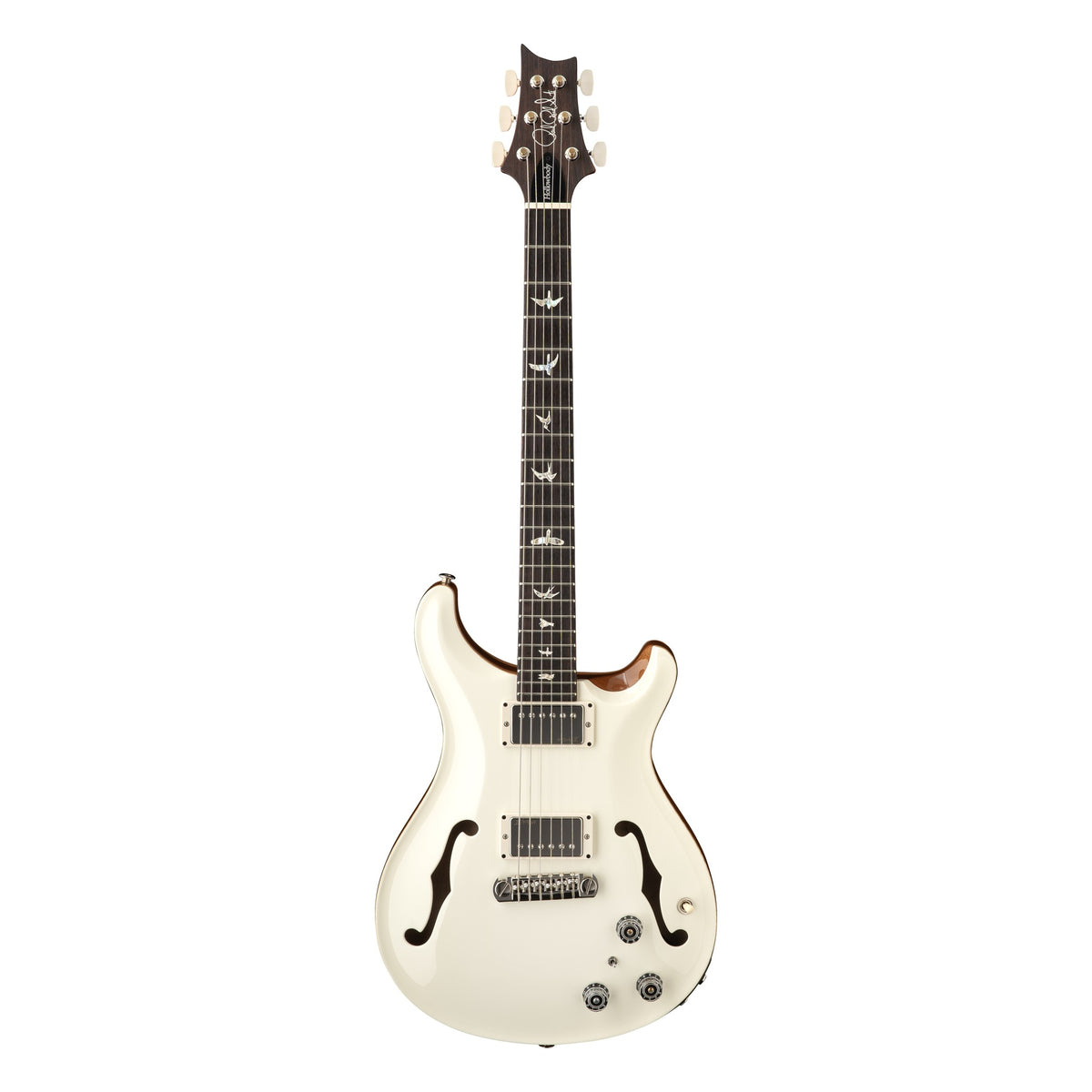

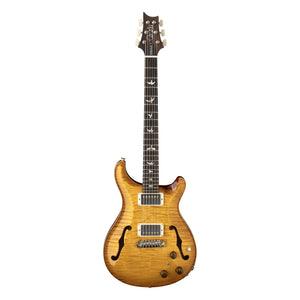

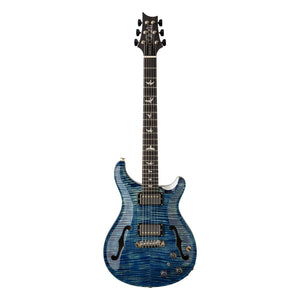

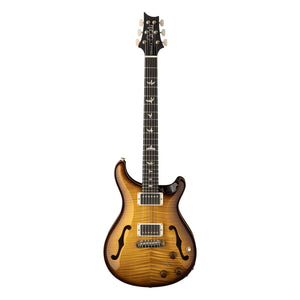

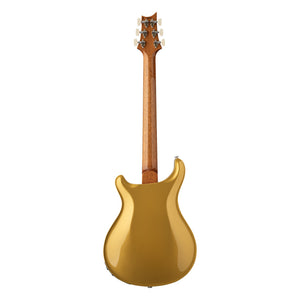

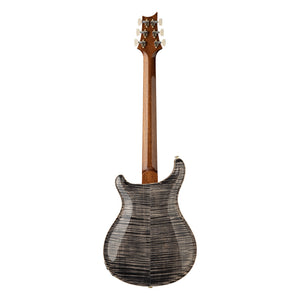

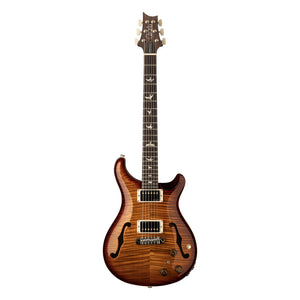

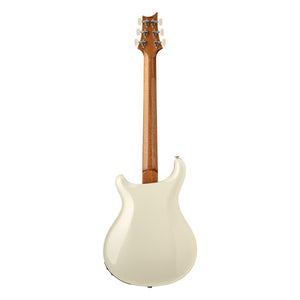

The Hollowbody II Piezo is a fully hollow PRS with two voices: a pair of McCarty III humbuckers and an LR Baggs/PRS Piezo System built into the bridge. The body is maple top and back with mahogany sides, on a 22-fret, 25" scale mahogany neck in PRS's Pattern shape.
The piezo lives in the PRS Adjustable 'Piezo' Stoptail, which has a piezo element in each of its six saddles. There are two output jacks, so the humbuckers can go to a guitar amp while the piezo goes to an acoustic amp or a DI at the board. The blend knob also mixes the two through a single output. The humbuckers get one volume, one tone and a 3-way toggle, and the piezo system has its own 3-way switch.

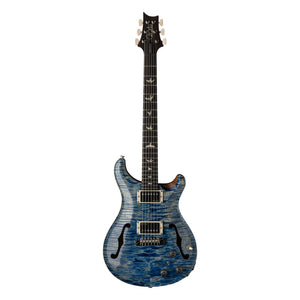

This is for someone who moves between acoustic and electric parts in one set and wants one guitar on the stand. Compare it with the PRS McCarty 594 Hollowbody II, which drops the piezo for a 24.594" scale, a Pattern Vintage neck and two volumes with two tones. Our pick is Faded Blue Jean, a soft blue that suits quieter rooms.
For the Top, choose Standard figured maple or PRS's 10 Top and Back, the higher grade of figure on both faces, which PRS lists with hybrid hardware.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Construction: Hollowbody
Top Wood: Maple
Middle Wood: Mahogany
Back Wood: Maple
Top Carve: Violin
Finish Type: High-Gloss Nitro
NECK
Number of Frets: 22
Fret Wire: PRS Standard Fret Wire
Width of Fret Crown: .104"
Height of Fret Crown: .047"
Scale Length: 25"
Neck Wood: Mahogany
Neck Construction: One-Piece
Truss Rod: PRS Double-Acting
Neck Shape: Pattern
Neck Depth at the 1/2 Fret: 7/8"
Neck Depth at the 12 1/2 Fret: 61/64"
Neck Width at the Nut: 1 11/16"
Neck Width at the Body: 2 1/4"
Fretboard Wood: Rosewood
Fretboard Radius: 10"
Fretboard Inlay: Birds
Headstock Logo: Signature
Neck/Body Assembly Type: Set
HARDWARE
Bridge: PRS Adjustable 'Piezo' Stoptail
Tuners: PRS Phase III Non-Locking Tuners with Wing Buttons
Hardware Type: Nickel
Nut: PRS
Truss Rod Cover: Hollowbody
ELECTRONICS
Treble Pickup: McCarty III
Bass Pickup: McCarty III
Controls: Volume and Tone Control w/ 3-Way Toggle Pickup Switch and LR Baggs/PRS Piezo Pickup System w/ 3-Way Pickup Switch and Blend Knob
STRINGS
Strings: PRS Signature 11-49 (with a plain “G”)
Tuning: Standard (6 String): E, A, D, G, B, E
Options: 10 Top and Back with Hybrid Hardware
CASE
Case: Gig Bag
