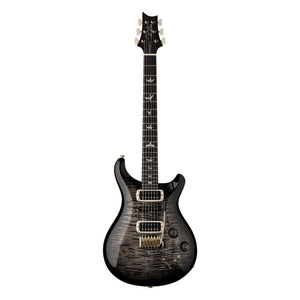

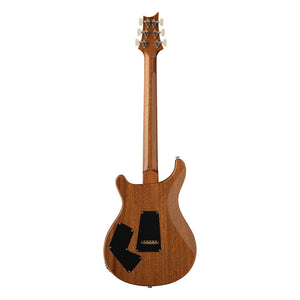

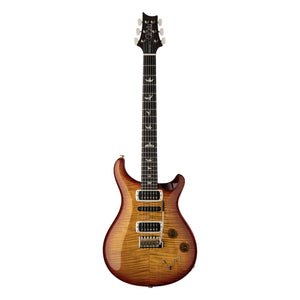

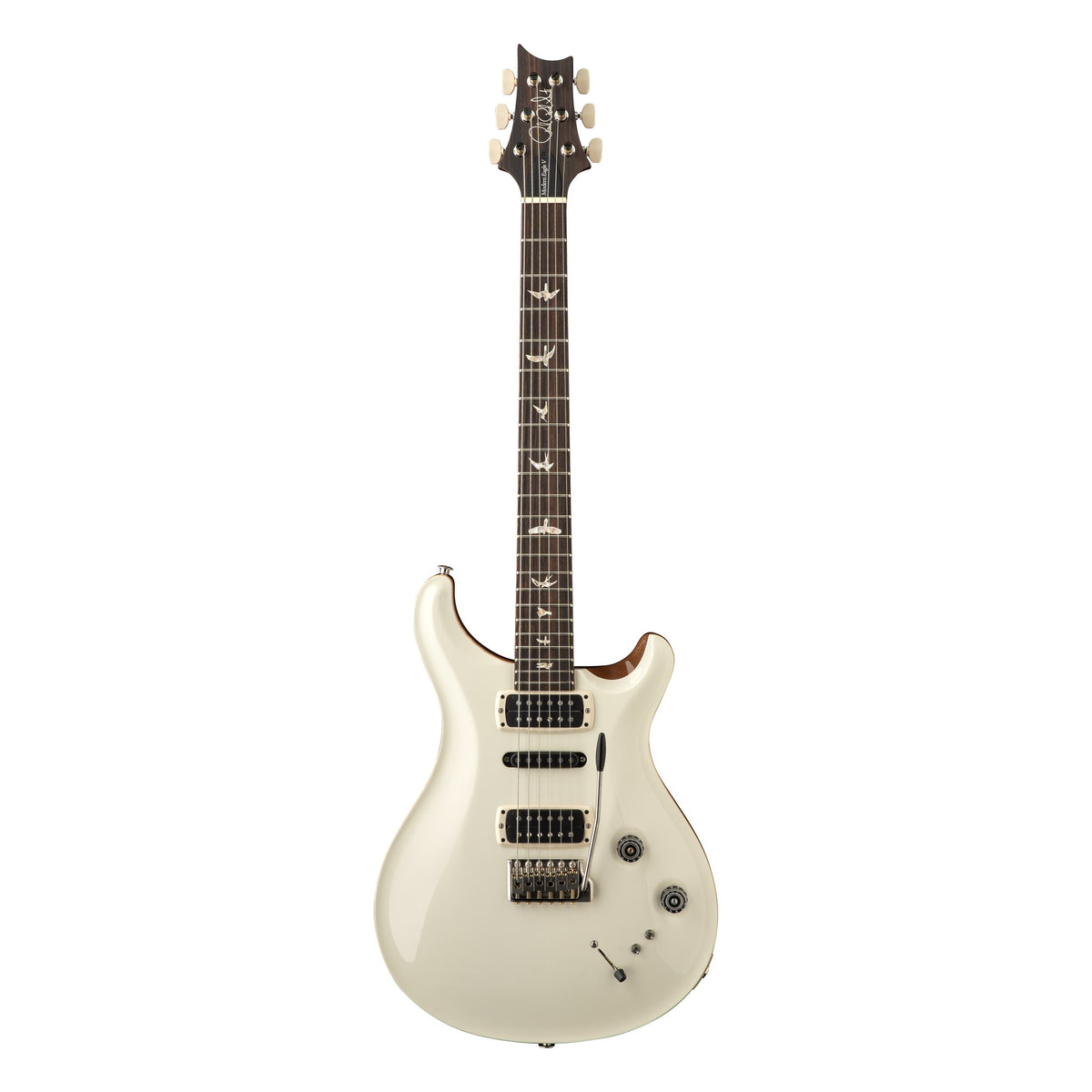

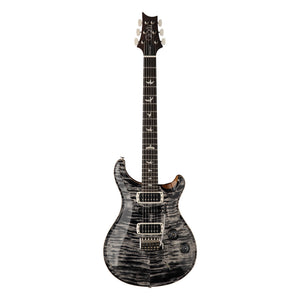

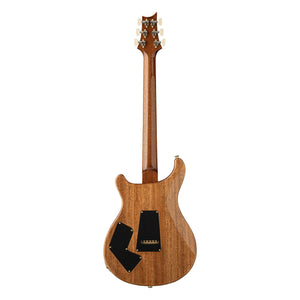

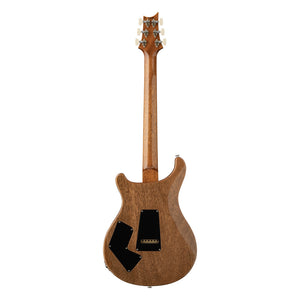

The Modern Eagle V is a hum/single/hum PRS with five coils to work with: TCI pickups at the treble and bass and an NS-01 in the middle. It sits on a maple top over mahogany, with a 22-fret Pattern mahogany neck on a 25" scale, a bone nut and PRS Vintage fret wire. Paul Reed Smith calls it sophisticated in its electronic and mechanical design as well as its craftsmanship.
The 5-way blade steps through treble, treble and middle, middle, middle and bass, and bass. Pull the tone knob and both humbuckers switch on, so all three pickups play at once. Two EQ mini-toggles act as tuned high-pass filters, and with one up the low end is trimmed for a clearer top.
It's for the player who likes to shape the sound at the guitar more than at the pedalboard. Compare it with the Custom 24-08, which shares the TCI pickups and EQ toggles in a two-pickup, 24-fret guitar, and the Special Semi-Hollow for hum/single/hum on a semi-hollow body. Our pick is River Blue Pearl, a cool blue that looks sharp beside the nickel hardware.
The Top option is Standard figured maple or PRS's 10 Top, a higher grade of figure.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Construction: Solidbody
Top Wood: Maple
Back Wood: Mahogany
Top Carve: Violin
Finish Type: High-Gloss Nitro
NECK
Number of Frets: 22
Fret Wire: PRS Vintage Fret Wire
Width of Fret Crown: .110"
Height of Fret Crown: .050"
Scale Length: 25"
Neck Wood: Mahogany
Neck Construction: One-Piece
Truss Rod: PRS Double-Acting
Neck Shape: Pattern
Neck Depth at the 1/2 Fret: 7/8"
Neck Depth at the 12 1/2 Fret: 61/64"
Neck Width at the Nut: 1 11/16"
Neck Width at the Body: 2 1/4"
Fretboard Wood: Rosewood
Fretboard Radius: 10"
Fretboard Inlay: Birds
Headstock Logo: Signature, Inlaid
Neck/Body Assembly Type: Set
HARDWARE
Bridge: PRS Patented Tremolo, Gen III
Tuners: PRS Phase III Locking Tuners with Wing Buttons
Hardware Type: Nickel
Nut: Bone
Truss Rod Cover: "Modern Eagle V"
ELECTRONICS
Treble Pickup: TCI
Middle Pickup: NS-01
Bass Pickup: TCI
Controls: Volume and Push/Pull Tone Controls with 5-Way Blade Pickup Switch and Two Mini-Toggle EQ Switches
STRINGS
Strings: PRS Signature 10-46
Tuning: Standard (6 String): E, A, D, G, B, E
CASE
Case: Hardshell Case
