The Tekton SVN is the 7-string in PRS's new Tekton family, with a 26.5" scale for a tighter, clearer low B. It keeps the Tekton feel: a thin Modern "D" SVN neck, 16" radius, stainless steel frets and the same body shape with a figured mango top.
PRS Stylus SVN pickups are voiced for articulation, so chords on the low strings stay separated under high gain and they behave well into a modeller as well as a tube amp. The push/pull tone splits both coils.
The nut is 1 29/32" wide and the neck 2 5/8" at the body. It's a string-through 7-string hardtail with PRS Phase III locking tuners, strung 10-59 in B standard.

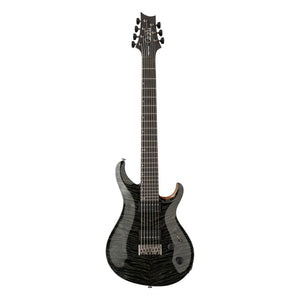

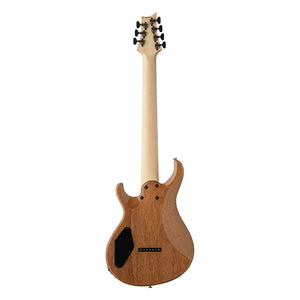

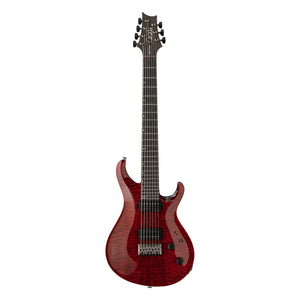

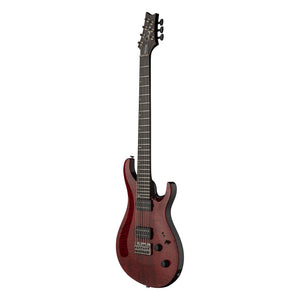

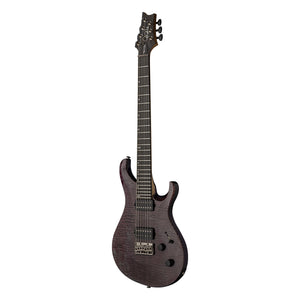

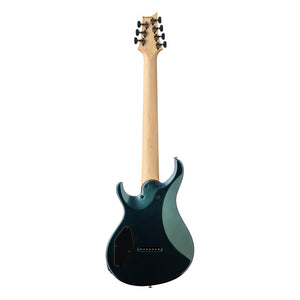

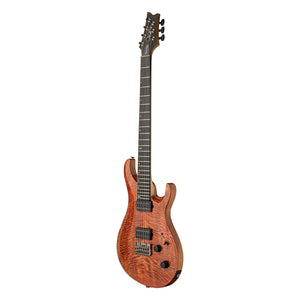

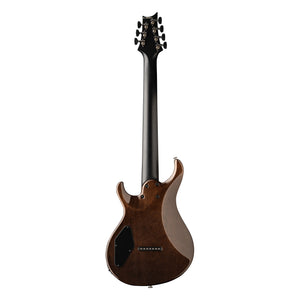

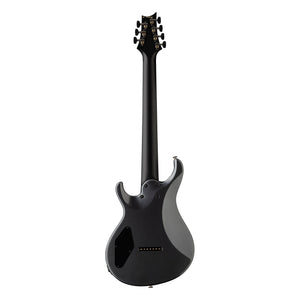

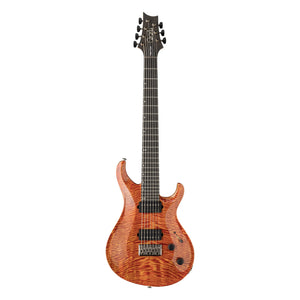

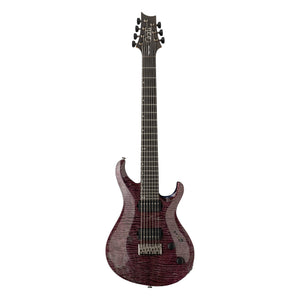

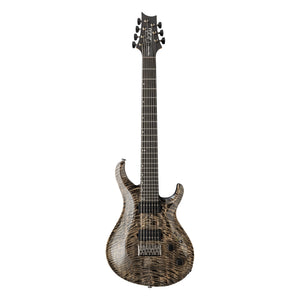

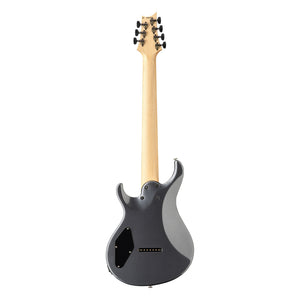

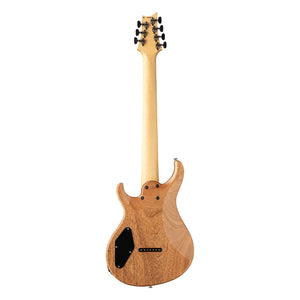

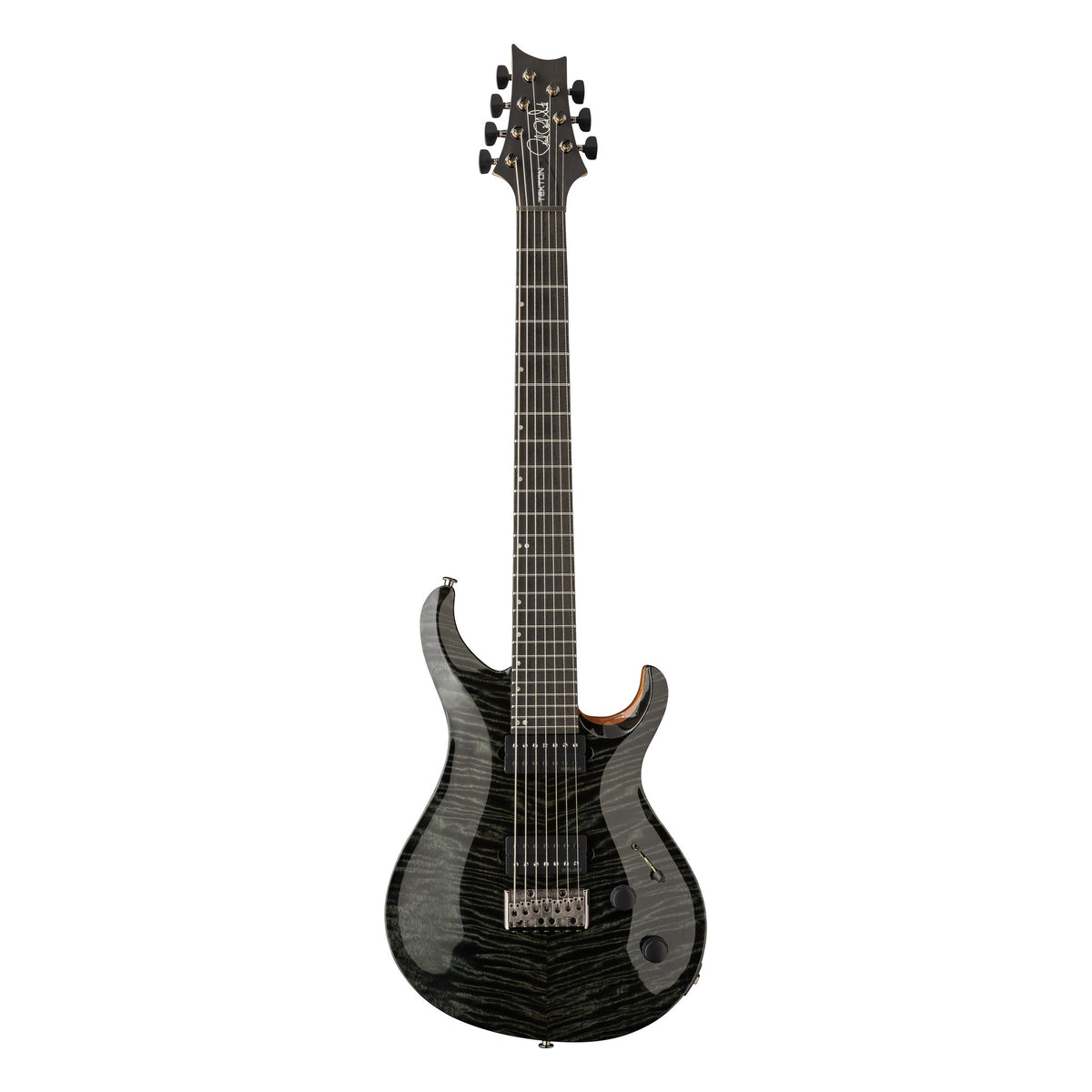

Bloodstone Red and Fuchsia Aura come with a black satin neck; Slate Blue, Imperial Topaz, Black Tourmaline and Violet Tourmaline have a natural maple neck. For six strings on the same platform, the Tekton is the hardtail.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Construction: Solidbody
Top Wood: Figured Mango
Back Wood: Mahogany
Top Carve: Shallow Violin
Finish Type: High-Gloss Nitro
NECK
Number of Frets: 24
Fret Wire: PRS Jumbo, Stainless Steel
Fret Crown: .110" wide, .055" high
Scale Length: 26.5"
Neck Wood: Maple
Neck Construction: Scarfed
Truss Rod: PRS Double-Acting
Neck Shape: Modern "D" SVN
Neck Depth at the 1/2 Fret: 49/64"
Neck Depth at the 12 1/2 Fret: 27/32"
Neck Width at the Nut: 1 29/32"
Neck Width at the Body: 2 5/8"
Fretboard Wood: Ebony
Fretboard Radius: 16"
Sidedots: Luminlay, Blue
Fretboard Inlay: Offset Dots
Headstock Logo: Signature, Inlaid
Neck/Body Assembly: Bolt-On
Neck Finish Type: Satin Nitro
HARDWARE
Bridge: PRS Hardtail, 7-string
Tuners: PRS Phase III Locking Tuners
Hardware Type: Smoked Black
Nut: PRS
Truss Rod Cover: Tekton
ELECTRONICS
Treble Pickup: PRS Stylus SVN
Bass Pickup: PRS Stylus SVN
Controls: Volume and Push/Pull Tone Control with 3-way Blade Pickup Switch
STRINGS
Strings: PRS Signature, 10-59
Tuning: Standard (7-String): B, E, A, D, G, B, E
CASE
Included: PRS Premium Gig Bag
