Jackson USA Signature David Ellefson Concert Bass CB V

Name: Jackson USA Signature David Ellefson Concert Bass CB V
Brand: Jackson
Price: 8109.99 CAD
Availability: BackOrder

Pre-orderJackson part 2856691000

4.8★ average Google rating

$8,109.99 CAD

Finish: Satin Silver

By placing a pre-order you agree to our Pre-order Terms.

Time of arrival for special orders varies by product.
It can be anywhere from two weeks up to several months. After you order, we check with the supplier and email you an ETA. Want an estimate before you order?

Ordered in for you
Set up free
Shipped insured from Ottawa
Free shipping over $200

Got a question about this one?

We love talking guitars.

Email usshop@lauzonmusic.com Call the shop613-725-1116

Our take

Who this one is for

The CB V is David Ellefson's USA Concert Bass as a 5-string, adding a low B below the standard four. It shares the 4-string's build: alder body, quartersawn maple neck-through with graphite reinforcement and a scarf joint, 34" scale, and an ebony board with outlined sharkfin inlays, 21 jumbo frets and a 12" to 16" compound radius. The nut widens to 1.75" to fit the fifth string.

Active EMG 40CS and 40DC pickups run through volume, a blend knob and three bands of EQ for bass, mids and treble. The bridge is a Jackson HiMass, the tuners are Hipshot Non-Locking, and it comes strung .045-.130 in a black hardshell case.

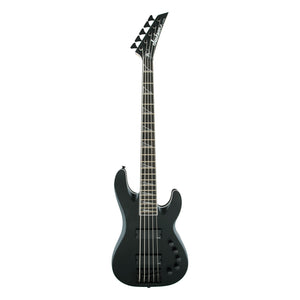

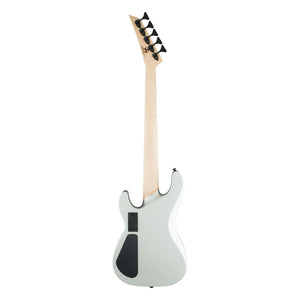

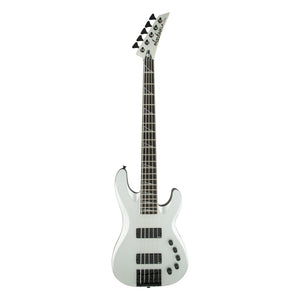

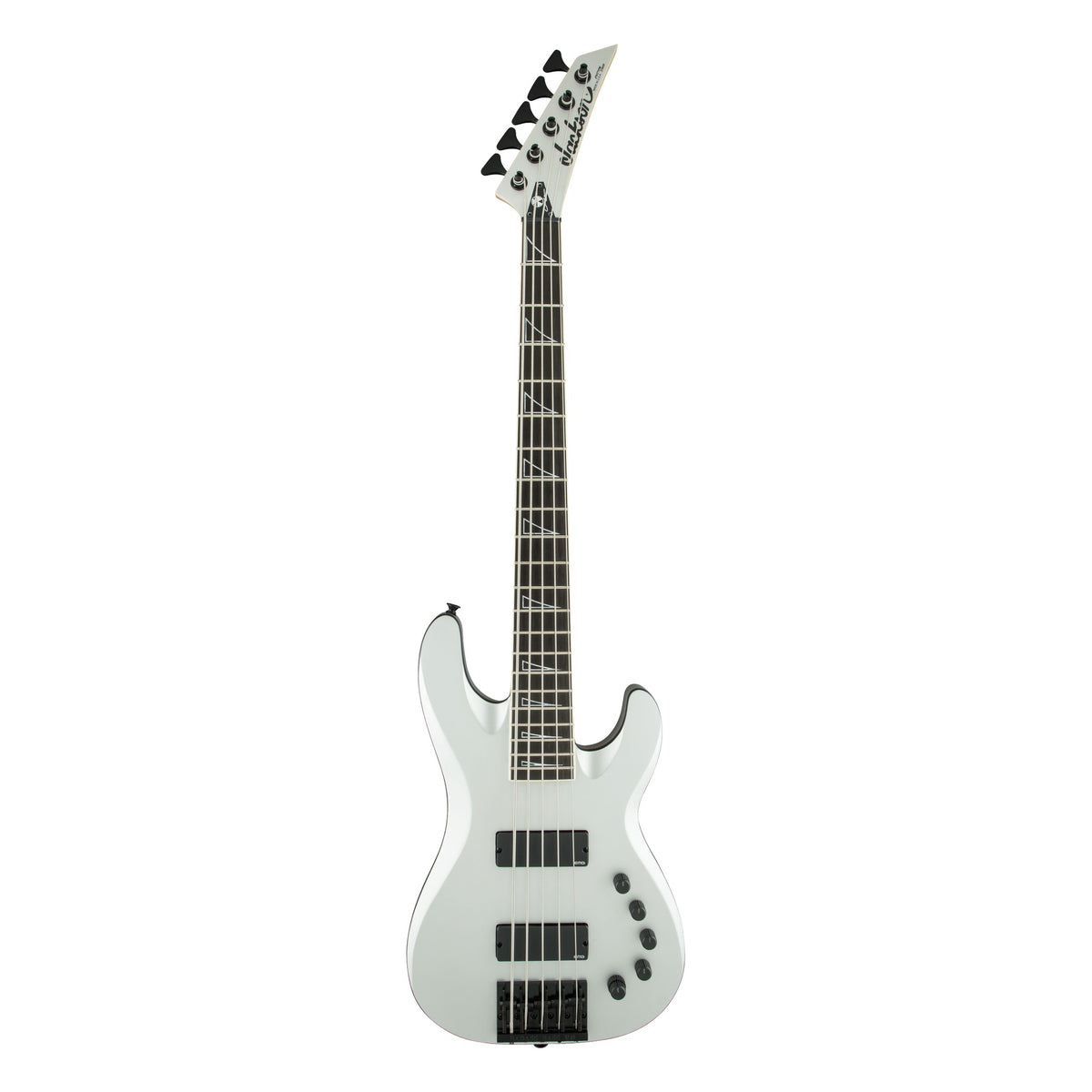

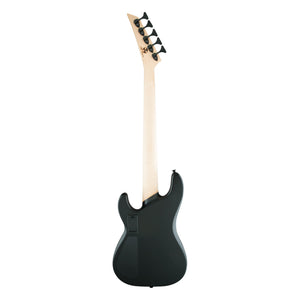

It comes in Satin Silver or Satin Black, with body binding in black or white depending on the finish. For four strings and the narrower 1.625" nut, look at the CB IV.

SPECIFICATIONS

BODY
Country of Origin: USA
Body Material: Alder
Body Finish: Satin
Body Shape: Concert Bass
Body Binding: Black or White (by finish)
Pickguard: None

NECK
Neck Material: Quartersawn Maple
Neck Construction: Neck-Through-Body with Graphite Reinforcement and Scarf Joint
Neck Finish: Hand-Rubbed Urethane
Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Ebony
Position Inlays: Outlined Sharkfin
Number of Frets: 21
Fret Size: Jumbo
Truss Rod: Dual-Action
Nut Material: Graphite
Nut Width: 1.75" (44.45 mm)
Scale Length: 34" (864 mm)

ELECTRONICS
Bridge Pickup: EMG 40DC
Neck Pickup: EMG 40CS
Pickup Configuration: HH
Controls: Volume, Blend, High, Low, Mid
Switching: Blend Control
Special Electronics: Active Electronics

HARDWARE
Bridge: Jackson HiMass
Hardware Finish: Black
Tuning Machines: Hipshot Non-Locking
Control Knobs: Dome-Style
Strap Buttons: Standard
Strings: Nickel Plated Steel (.045-.130 Gauges)

CASE
Case: Black Hardshell
